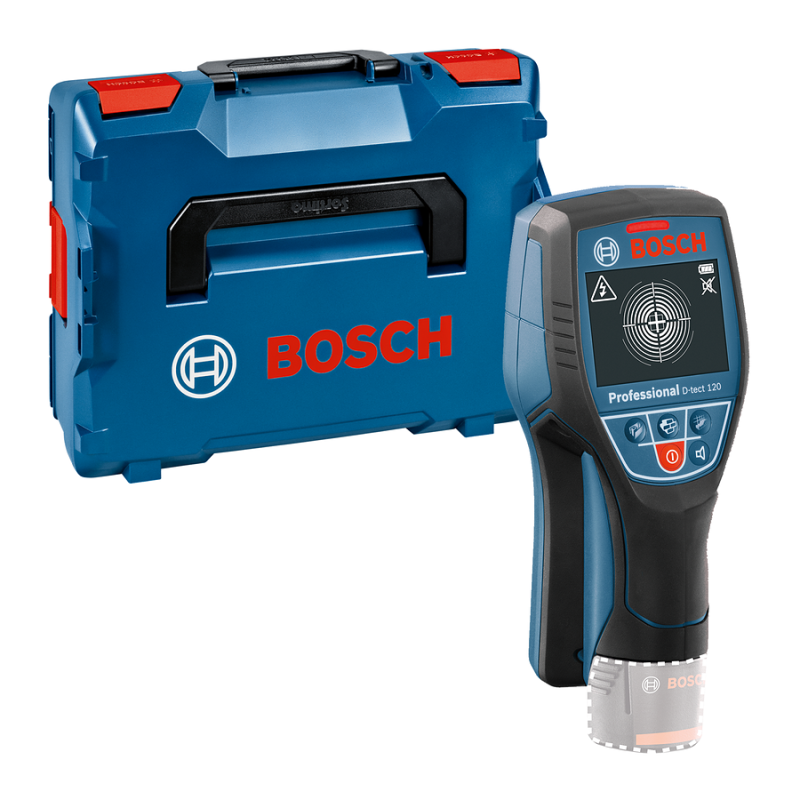

Bosch D-tect 120 wall scanner Detector L-Boxx Bare Unit

Intuitive radar scanner for almost all materials

User benefit

Spot measurement provides accurate detection on narrow surfaces

Centre finder offers visual guidance, to clearly identify the precise location of the object's centre

Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries

Technical data

Battery voltage12 V

Bosch Radar Technologyyes

Detectable objectsmagnetic metals (e.g. iron)
non-magnetic metals (e.g. copper)
live cables
non-live cables
water-filled plastic pipes
wooden substructures

Max. detection depth120 mm

Detection depth, magnetic metal, max.120 mm

Detection depth, non-magnetic metal, max.120 mm

Detection depth, live cables, max.60 mm

Detection depth, wooden substructures, max.38 mm

Accuracy± 10 mm* (*plus use-dependent deviation)

ViewsSpot view

Wall typesConcrete
Drywall
Universal

Material identificationLive cable

Power supply12 V Li-ion or 4 x 1.5 V LR6 (AA)

Automatic deactivation, approx.5 minutes

Weight, approx.0.5 kg

Additional functionDual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator
